Smart barrier gate radar for vehicle and pedestrian detection, helping improve barrier arm safety and parking access control efficiency.

Name: Smart barrier gate radar for vehicle and pedestrian detection helping improve barrier arm safety and parking access control efficiency
Brand: JUTAI
Price: 1 USD

MOQ : 1

Delivery Time : 5-8 work days

Antenna Configuration : 2T4R Antenna

Average Power : 1.2W@12V

Certification : CE

Protection Rating : IP66

Response Time : ≤100ms

Model Number : RD79-6M

Detection Target : Vehicle Only / Pedestrian and Vehicle Detection

Maximum Current : 600mA

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Radar Technology : 79GHz Millimeter Wave Radar

Distance Resolution : 4cm

Main Function : Barrier Anti-Crush Protection and Opening Trigger

Price : negotiation

Operating Frequency : 79–81GHz

Supply Ability : 1000 pcs/m

Product Type : Barrier Gate Radar Sensor

Wiring Output : Power, GND, RS485, COM, NO

Radar Mode : Anti-Crush / Trigger / Inclined Mount Trigger

Operating Temperature : -40℃ to +80℃

Communication Method : Communication Method

Product Size : 73.5 × 110.9 × 32.8mm

Place of Origin : China

App Configuration : GL Control

Brand Name : JUTAI

Barrier Arm Type : Straight Arm / Folding Arm / Fence Arm / Advertising Barrier

Packaging Details : carton

Supply Voltage : DC12–24V

Average Current : 200mA@12V

Contact Now

Smart Barrier Gate Radar for Vehicle and Pedestrian Detection

Product Overview

The RD79-6M 79GHz Millimeter Wave Barrier Gate Radar Sensor provides advanced anti-crush protection and trigger detection for parking barrier gates, entrance and exit management systems, parking lots, underground garages, and vehicle access control systems.

Smart barrier gate radar for vehicle and pedestrian detection, helping improve barrier arm safety and parking access control efficiency.

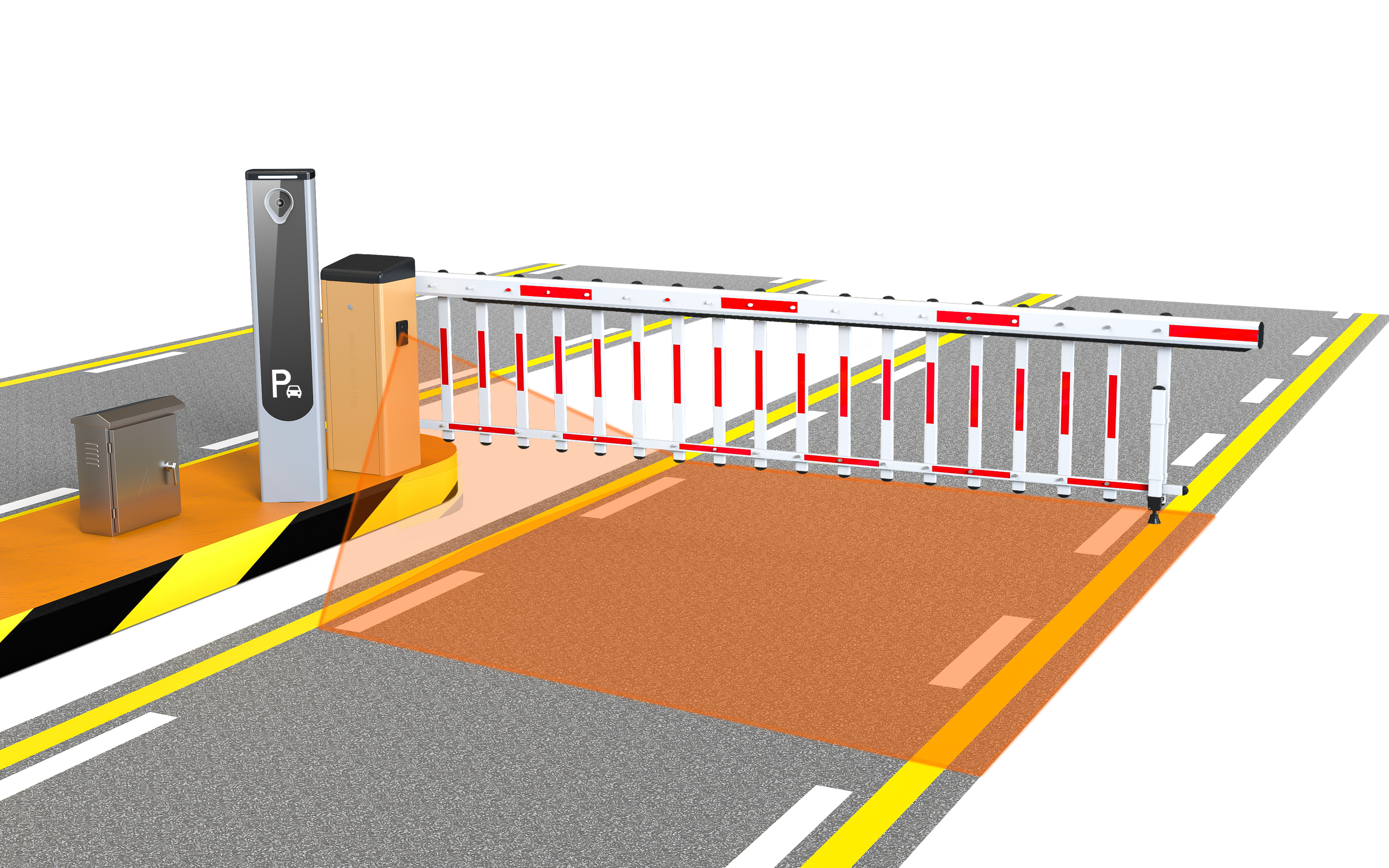

This 79GHz millimeter wave radar sensor detects vehicles or pedestrians within the barrier arm zone, enabling safer lifting and lowering actions. Compared to traditional loop detectors or infrared sensors, the RD79-6M utilizes 79GHz LFM-CW radar technology with a 2T4R antenna structure, delivering high distance resolution, accurate target detection, and stable operation in outdoor or complex parking environments.

The radar supports multiple barrier arm types including straight arm, folding arm, fence barriers, and advertising barriers. It features multiple detection modes: anti-crush mode, trigger mode, and inclined-mount trigger mode. With Bluetooth app configuration and RS485 communication, installers can conveniently adjust parameters during project commissioning.

Key Features

Dual Functionality - Integrates anti-crush protection and trigger detection in one radar sensor
79GHz High Precision Radar - 79-81GHz millimeter wave detection with 4cm distance resolution
Human-Vehicle Separation - Supports vehicle-only or pedestrian plus vehicle detection modes
Multiple Barrier Arm Compatibility - Works with straight arm, folding arm, fence arm, and advertising barrier gates
Bluetooth App Debugging - Configurable via GL Control app with Bluetooth connectivity
Adjustable Detection Range - Customizable left/right distance, long detection distance, and near no-detection distance
RS485 Communication & Relay Output - Compatible with barrier gate controllers and parking access control systems
IP66 Outdoor Protection - PC and aluminum alloy housing with -40℃ to +80℃ operating range

Technical Specifications

Item	Specification
Model	RD79-6M
Product Type	Barrier Gate Radar Sensor
Operating Frequency	79-81GHz
Radar Technology	LFM-CW Millimeter Wave Radar
Antenna	2T4R
Distance Resolution	4cm
Detection Target	Vehicle Only / Pedestrian and Vehicle Detection
Barrier Gate Type	Straight Arm / Folding Arm / Fence Arm / Advertising Barrier
Communication	Bluetooth / RS485
Response Time	≤100ms
Supply Voltage	DC12-24V
Average Current	200mA@12V
Maximum Operating Current	600mA
Average Power	1.2W@12V
Housing Material	PC + Aluminum Alloy
Product Size	73.5 * 110.9 * 32.8mm
Protection Rating	IP66
Operating Temperature	-40℃ to +80℃

Wiring Definition

Wire Color	Function
Red	+12-24V DC
Black	GND
Green	RS485 B-
Yellow	RS485 A+
Blue	COM
White	NO
Brown	Reserved
Orange	Reserved

Applications

Parking barrier gates
Parking lot entrances and exits
Underground garage access control
Residential community parking gates
Commercial building parking systems
Vehicle entrance management
Straight arm barrier gates
Folding arm barrier gates
Fence barrier gates
Advertising barrier gates
Barrier gate anti-crush protection
Vehicle trigger detection

Installation Notes

The radar is installed on the barrier gate cabinet side. Installation requires a Φ17mm opening hole, with horizontal distance from the barrier cabinet approximately 23-33cm, and fixed hole distance from the ground varying according to barrier size.

Recommended installation points:

Install the radar on the barrier gate cabinet side facing the barrier arm area
Keep the radar detection area aligned with the barrier arm protection zone
Set the correct barrier arm type and direction in the app
Perform background learning after installation and parameter adjustment
Keep people and vehicles away from the detection zone during background learning
Save configuration after completing all parameter settings

Frequently Asked Questions

Q1: What is RD79-6M mainly used for?

A: RD79-6M is mainly used for parking barrier gates to provide anti-crush protection and trigger detection for vehicles and pedestrians.

Q2: What frequency does RD79-6M use?

A: RD79-6M operates at 79-81GHz millimeter wave radar frequency.

Q3: Can RD79-6M replace a traditional loop detector?

A: In many barrier gate applications, RD79-6M can be used as a radar-based trigger or anti-crush detection solution, especially where ground loop installation is difficult.

Q4: Does it support pedestrian detection?

A: Yes. The radar supports vehicle-only detection and pedestrian plus vehicle detection modes.

Q5: What barrier arm types are supported?

A: It supports straight arm, folding arm, fence arm and advertising barrier gate applications.

Q6: How is the radar configured?

A: The radar can be configured through the GL Control app by Bluetooth connection. Installers can set device mode, barrier type, arm direction, detection target and detection range.

Q7: What communication methods are supported?

A: RD79-6M supports Bluetooth and RS485 communication.

Q8: What is the working voltage?

A: The working voltage is DC12-24V.

Q9: Is it suitable for outdoor use?

A: Yes. RD79-6M has an IP66 protection rating and works from -40℃ to +80℃.

Q10: Does it support background learning?

A: Yes. After installation and parameter setting, background learning helps the radar adapt to the site environment and improve detection stability.
